The following items may need to added to your Shed Kit Build. Note: we provide the purchase of the initial kit above,
but the list of items below may also be needed. If you already have things in place you can leave those items out.
Ground Work/Site Prep/Gravel
The location needs to be clear and ready. Gravel may need to be brought in. If you are unsure how
ready your site is, one of our team can come out and make an assesment to confirm where you're at.
Base: Concrete Pad, Pavers or Wood Base
The shed will definitely need to be put on a base. Options are for a concrete slab, pavers, or a wood base on prepared ground.
If you already have this, your good to go (just make sure its level). If you need someone to do this for you, our team can do this as well
- or you can source someone else to do this step.
Roofing (ice & water barrier & steel)
The building kits come with tongue and groove roof slats - but for water tightness you will want the ice/water barrier and the steel roof.
We can supply this - or you can find another provider, or as always, you could do it yourself.
High Quality Stain (wall protection)
We recommend nothing but the best. Our team can do this for you - or we can point you in the right direction.
If you would like that extra layer of protection, and year round use, we can add insulation and sheathing.
This would be recommended for the Cabins and will be necessary for Homes.
We offer 3 types of siding kits to cover the exterior of the home or cabin, or we can provide a Custom Local Quote:
Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
EZ Log Full D-Log tongue & groove wood siding (Add 14%)
Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
Heavy Duty maintenance free extruded PVC polymer siding (Add 20%)
Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
Custom Local Siding Quote
We can also provide you a quote for a locally sourced siding option. PVC, Steel, or other.
Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 12"
Build Team
For ease of mind to get all of the above or just specific steps, you can request our build team to do it for you.
It can be a one stop shop - the Complete Package Option. Either choose all of the above, or just pick which steps
you need us for.

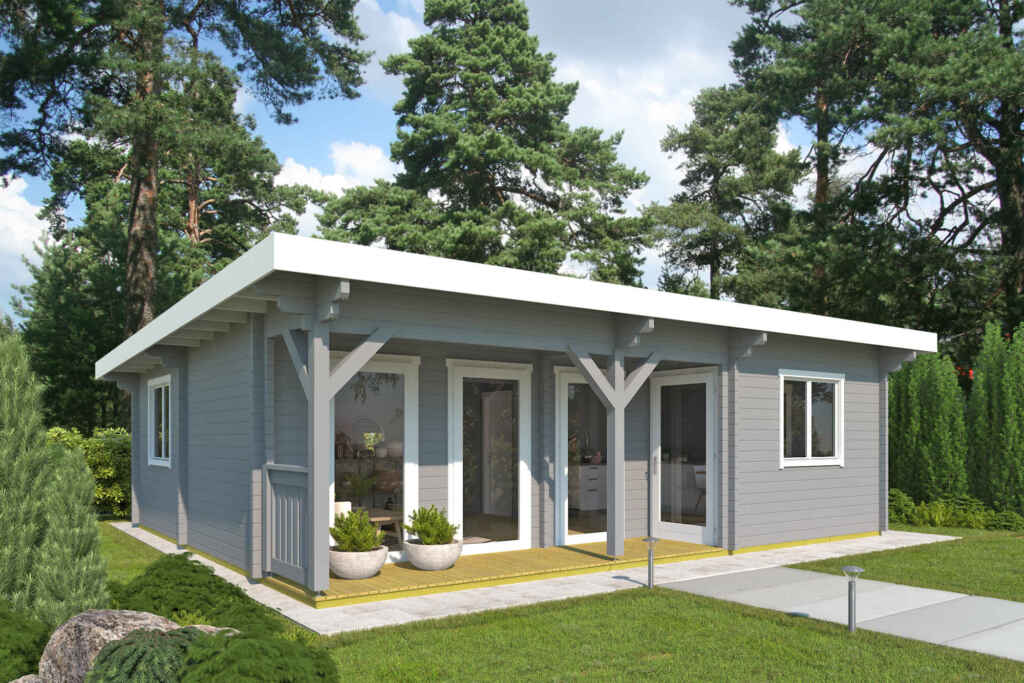

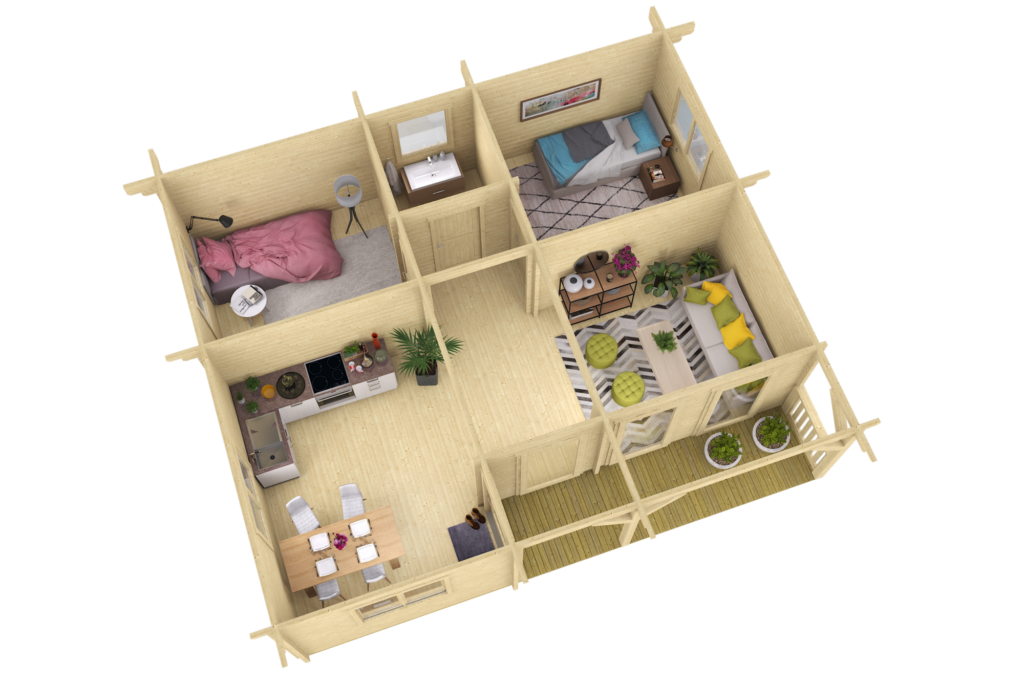

Mason is a stylish 2 bedroom home with 70mm (2-3/4″) thick wall logs. The total footprint is 28′ x 24′ (672 sq’) The vaulted/cathedral ceiling provides plenty of interior height. This floor plan can be modified at no additional cost, providing no extra materials are required. If you like the design and want to increase the overall size, let us know and a price will be provided.
Kit includes:
ready to assemble on a concrete slab or wood foundation
pre-cut, numbered exterior walls
pre-cut, numbered interior walls
pre-cut, numbered gable components
vaulted, cathedral ceilings
0.5/12 roof pitch (2 degrees)
pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
1 single wide wood windows 530mm x 530mm (21″x 21″)
3 single wide wood windows 765mm x 1530mm(30″ x 60″)
4 double wide wood window 1530mm x 990mm (60″x 39″)
1 exterior door 990mm x 2040mm (36″x80″) full glass tempered, multi locking hardware
deck railings with vertical balustrades
adjustable posts
hardware for doors & windows
2 spare wall logs/spare roof boards
1,150 – 8″ log screws to connect each row, gable components, purlins
packaged/wrapped for sequence of assembly
SHIPPING request a quote

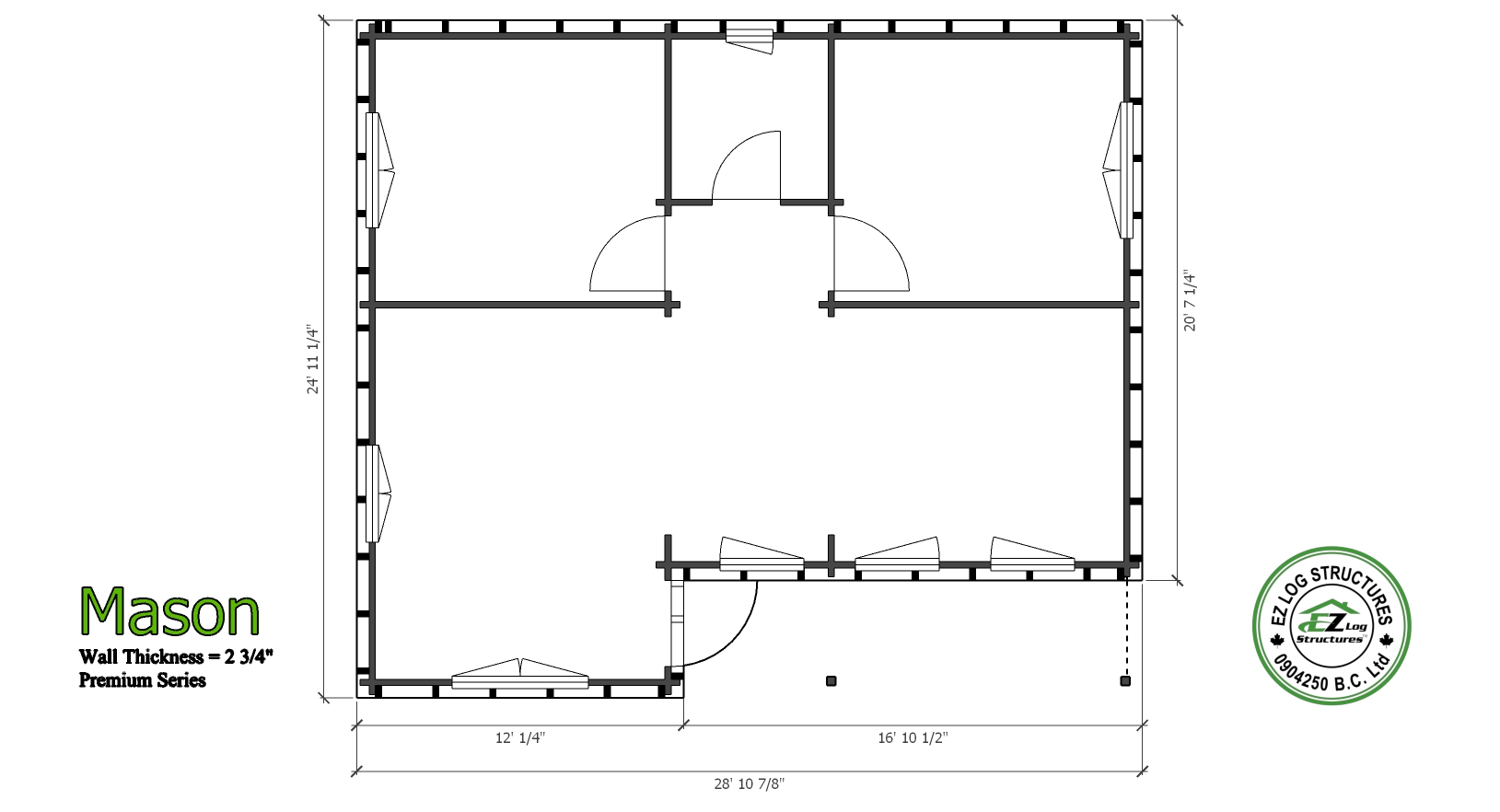

FOUNDATION SIZE DRAWING
STAMPED STRUCTURAL ENGINEERING
Window Options:
Kit includes double glazed residential grade wood windows.
To upgrade all windows to triple glazed/Low E/Argon gas filled (12 sash)
Add $ 1,680.00 CAD
OR
PVC window - white frame. PVC window with built-in external shutters. Shutter window.
Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
2
1
336"x288"
672
1214
2-3/4"
3/4"
0.5/12 2D
89/101"
