The following items may need to added to your Shed Kit Build. Note: we provide the purchase of the initial kit above,
but the list of items below may also be needed. If you already have things in place you can leave those items out.
Ground Work/Site Prep/Gravel
The location needs to be clear and ready. Gravel may need to be brought in. If you are unsure how
ready your site is, one of our team can come out and make an assesment to confirm where you're at.
Base: Concrete Pad, Pavers or Wood Base
The shed will definitely need to be put on a base. Options are for a concrete slab, pavers, or a wood base on prepared ground.
If you already have this, your good to go (just make sure its level). If you need someone to do this for you, our team can do this as well
- or you can source someone else to do this step.
Roofing (ice & water barrier & steel)
The building kits come with tongue and groove roof slats - but for water tightness you will want the ice/water barrier and the steel roof.
We can supply this - or you can find another provider, or as always, you could do it yourself.
High Quality Stain (wall protection)
We recommend nothing but the best. Our team can do this for you - or we can point you in the right direction.
EXTERIOR 2×4 STUD & SIDING KITS
Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance.
Exterior 2×4 stud/siding kits include your choice of 3 siding types to cover the exterior of the garage.
EZ Log Semi D-Log tongue & groove pine siding, EZ Log Full D-Log tongue & groove pine siding or a
heavy duty maintenance free extruded PVC polymer siding, complete with all the trims. Each kit includes 2×4
studs for 22″ spacing with screws to mount the studs on the exterior.
External stud kits are required for Garages to meet code.
Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
EZ Log Full D-Log tongue & groove wood siding (Add 26%)
Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
Heavy Duty maintenance free extruded PVC polymer siding (Add 55%)
Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
Custom Local Siding Quote
We can also provide you a quote for a locally sourced siding option. PVC, Steel, or other.
Build Team
For ease of mind to get all of the above or just specific steps, you can request our build team to do it for you.
It can be a one stop shop - the Complete Package Option. Either choose all of the above, or just pick which steps
you need us for.

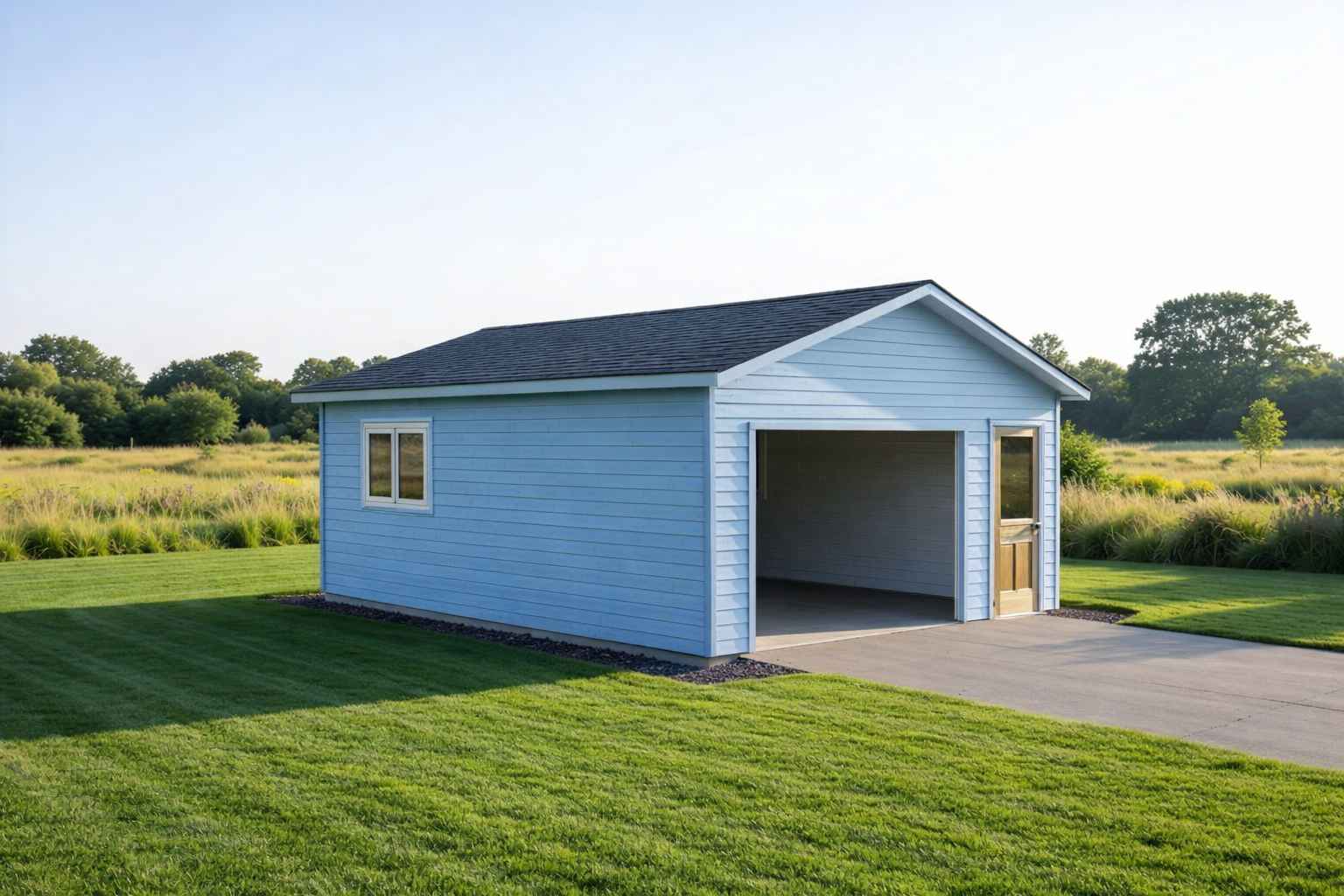

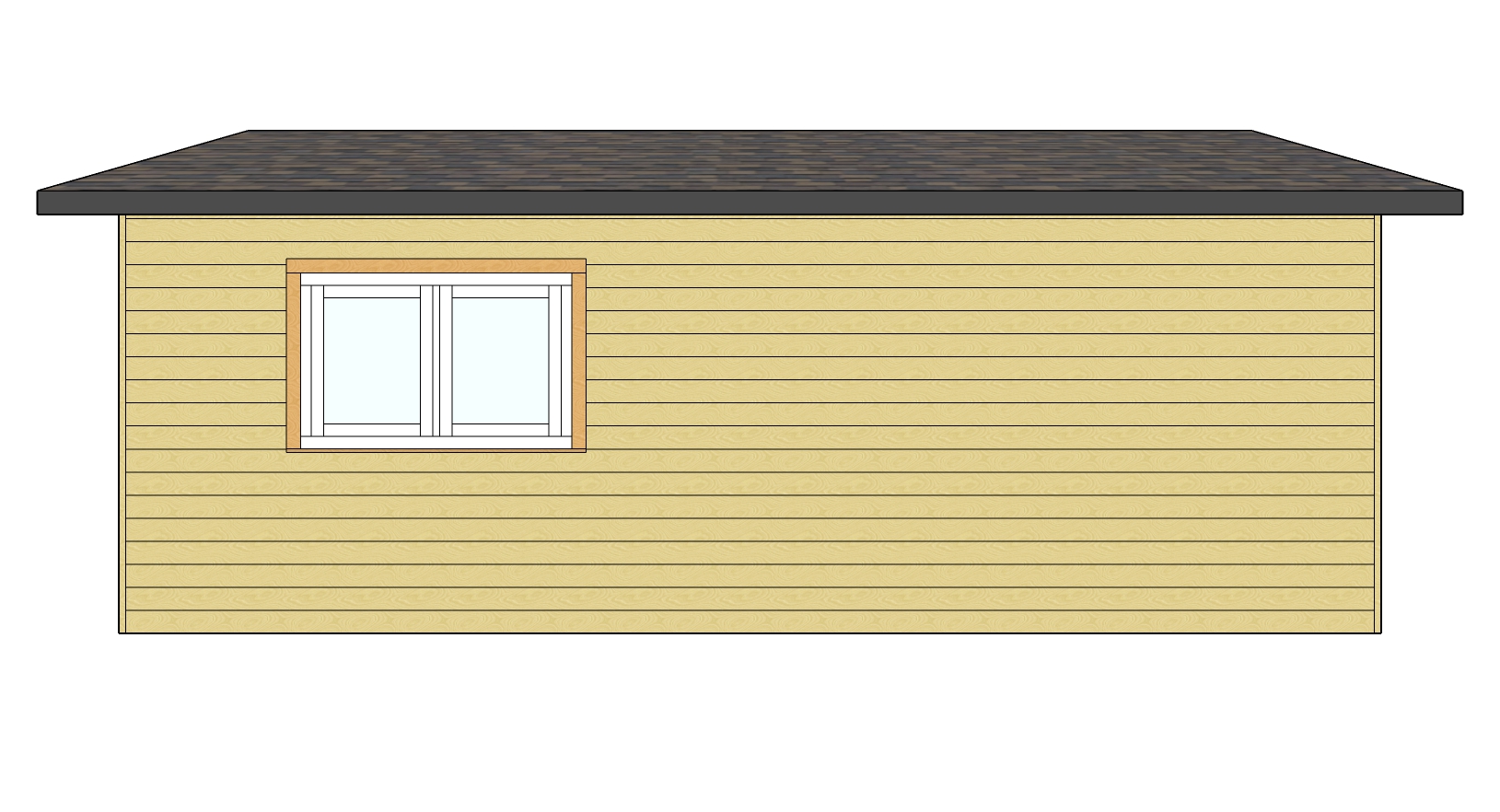

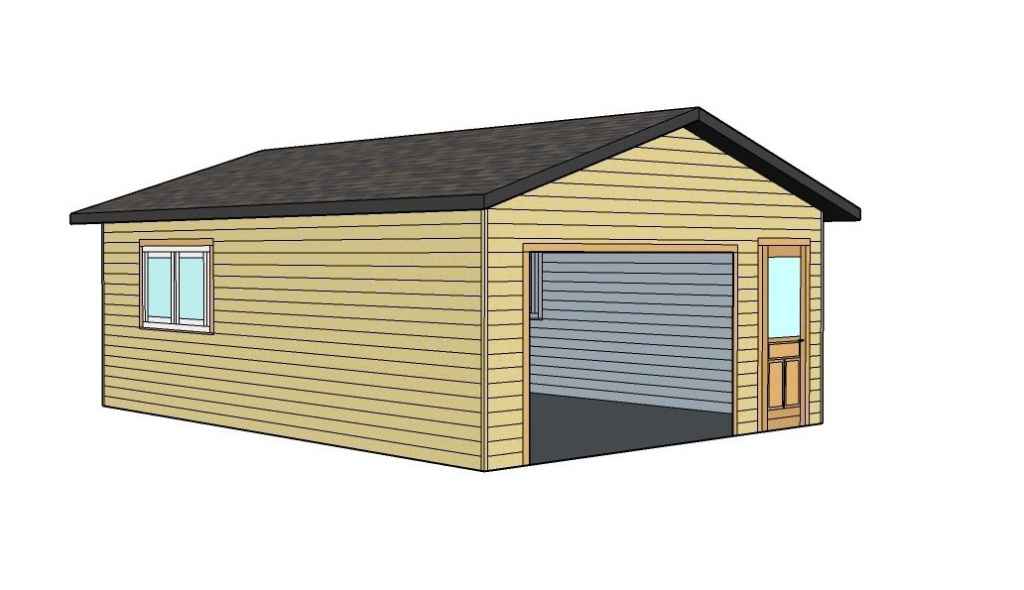

Garage 1824 is a single car garage with solid wood walls using 1-5/8″ x 4-3/8″ (40mm x 113mm) components. Once assembled, studs & siding are applied to the exterior. We offer 2 types of tongue & groove Pine siding plus an extruded PVC maintenance free siding. The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools
Kit includes:

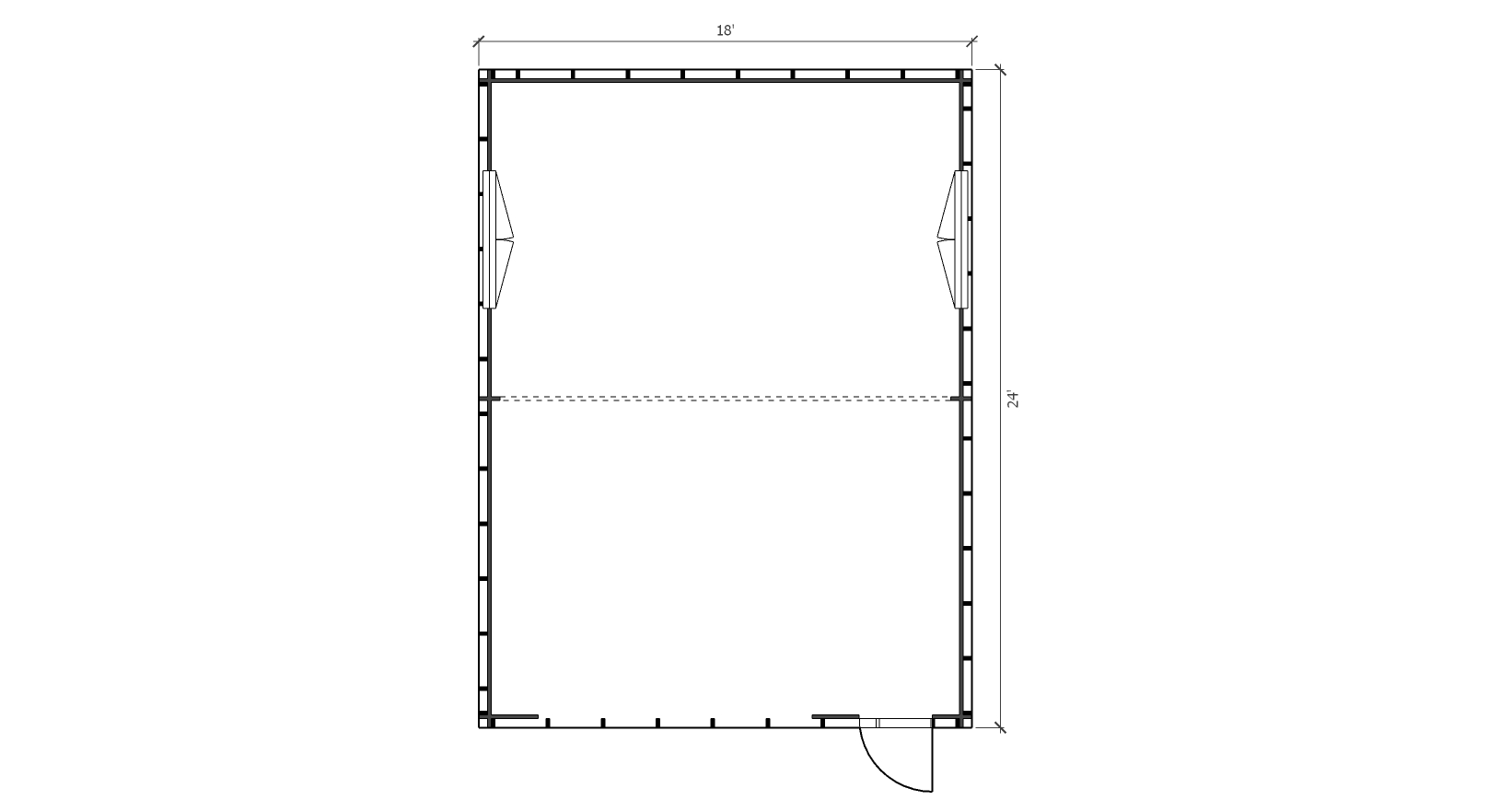

ready to assemble on a concrete slab
treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
pre-cut, numbered exterior walls
pre-cut, numbered interior walls
pre-cut, numbered gable components

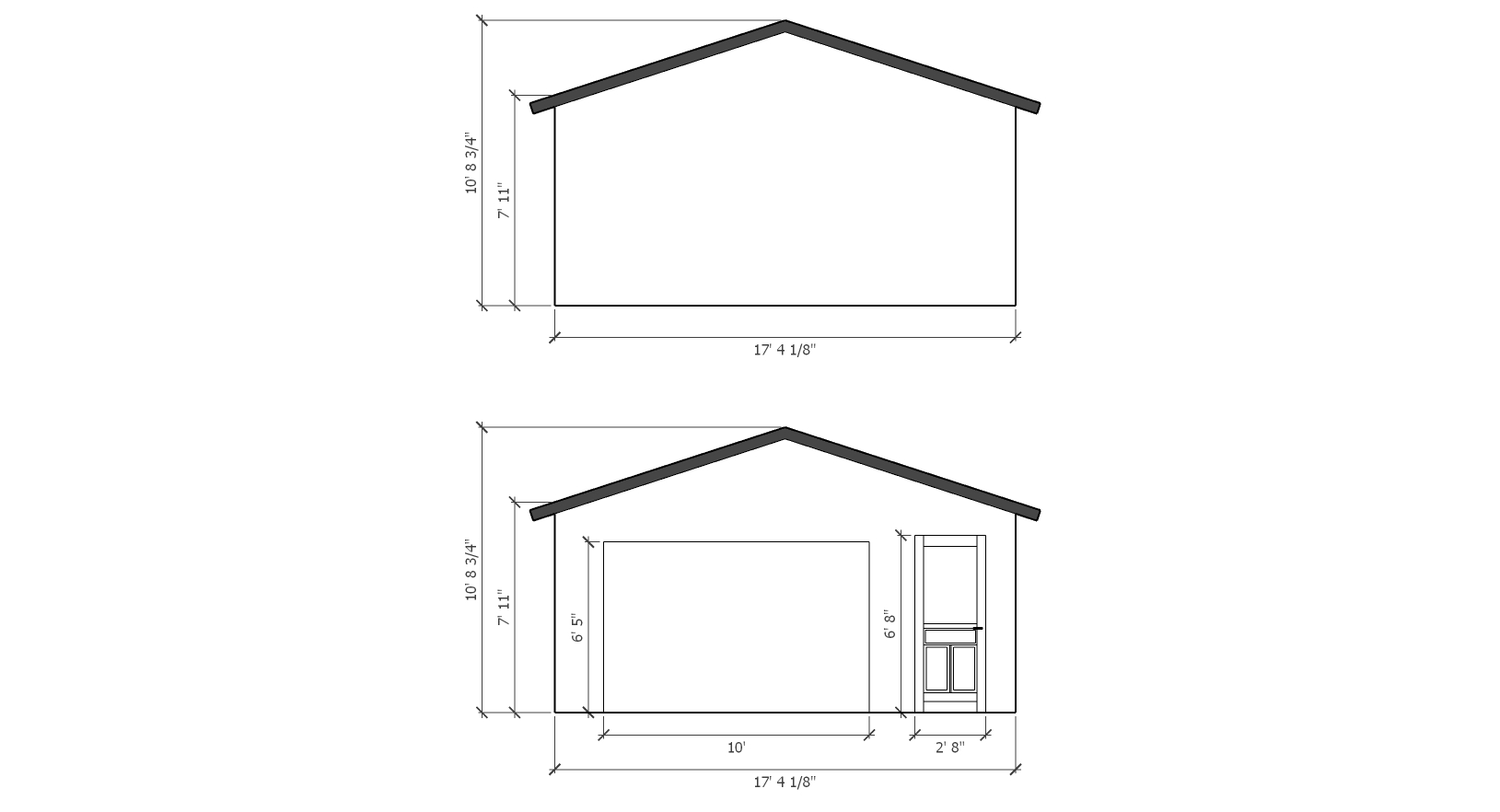

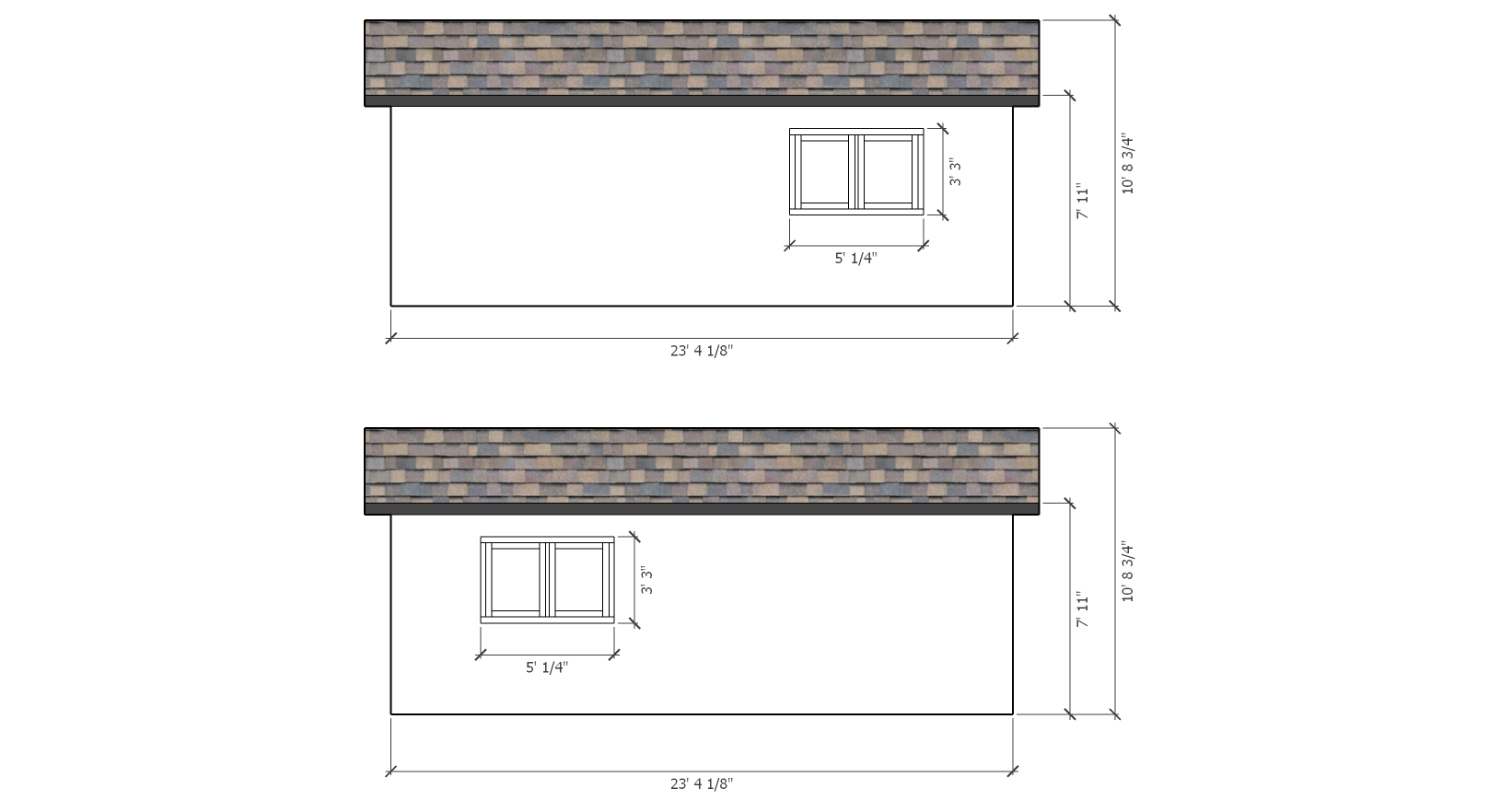

sidewall height 95″ (2413mm)
2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less

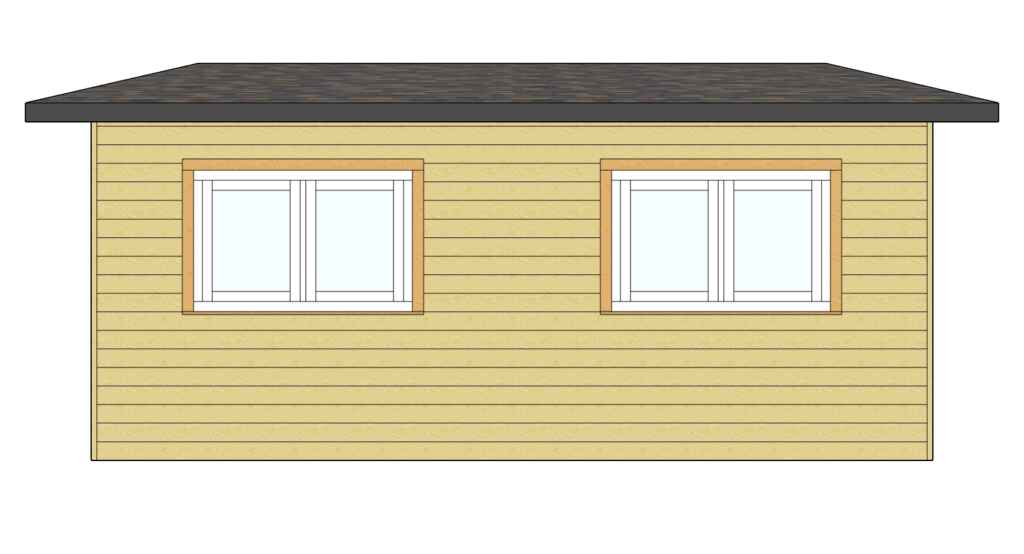

2 – double wide wood windows 60″x39″ (1530mm x 990mm)

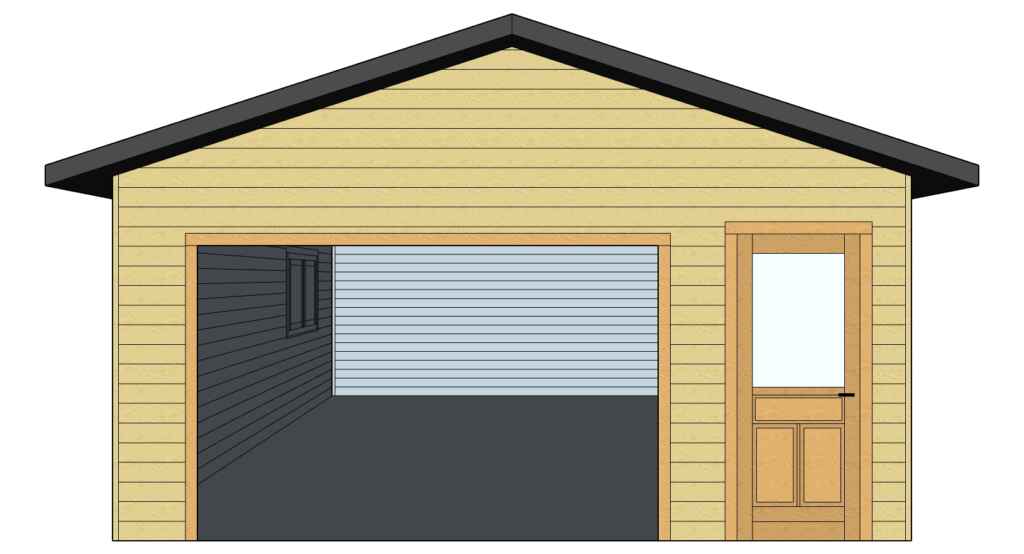

1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
693 sq’ of exterior wall surface
82 lineal’ per row
650 – 6″ log screws to connect each row, gable components, purlins
GARAGE OVERHEAD DOORS NOT INCLUDED
STAMPED STRUCTURAL ENGINEERING included when a siding kit is applied. The vertical studs are required to meet structural requirements for building codes. Stud and siding can be purchased locally
Window & Door Options:
If you prefer to use locally supplied windows and entry doors deduct the following:
Double wide wood windows (60″ x 39″) deduct: $ 454.00 CAD
Single wide wood windows (30″ x 39″) deduct: $ 337.00 CAD
Single wide wood entry door (32″ x 80″) deduct: $ 454.00 CAD

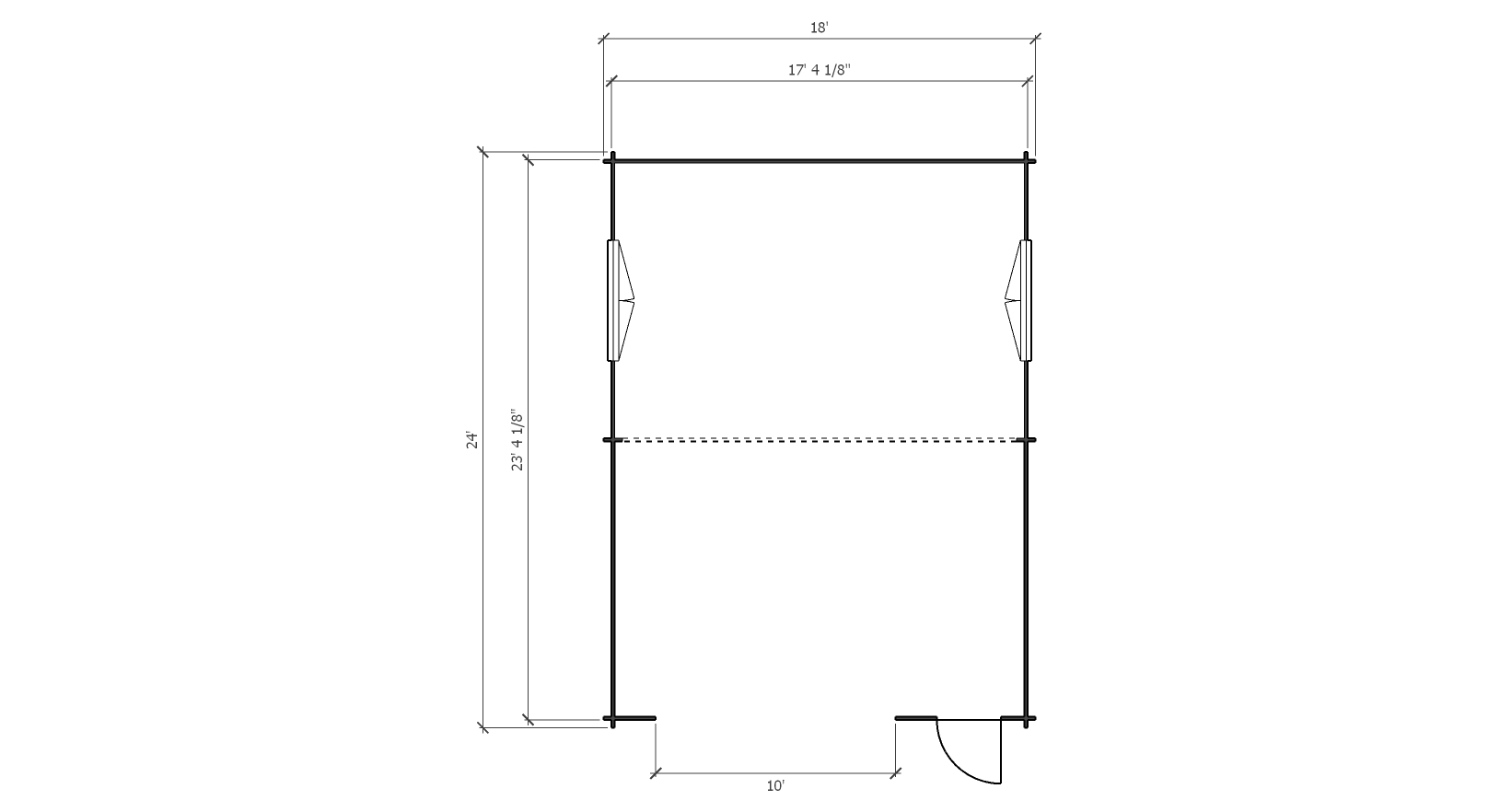

216"x288"
432
128"
4/12 18D
95"
