The following items may need to be added to your Home Kit Build. Note: we provide the purchase of the initial kit above,
but the list of items below may also be needed. If you already have things in place you can leave those items out.
Ground Work/Site Prep/Gravel
The location needs to be clear and ready. Gravel may need to be brought in. If you are unsure how
ready your site is, one of our team can come out and make an assesment to confirm where you're at.
Base: Concrete Pad or Concrete Foundation/Basement
Your Home will definitely need to be put on a foundation. Options are for a concrete slab/full foundation on prepared ground.
Roofing (ice & water barrier & steel)
The building kits come with tongue and groove roof slats - but for water tightness you will want the ice/water barrier and the steel roof.
We can supply this - or you can find another provider, or as always, you could do it yourself.
Electrical
Plumbing
Interior Finishes
High Quality Stain (wall protection)
We recommend nothing but the best. Our team can do this for you - or we can point you in the right direction.
If you would like that extra layer of protection, and year round use, we can add insulation and sheathing.
This would be recommended for the Cabins and will be necessary for Homes.
We offer 3 types of siding kits to cover the exterior of the home or cabin, or we can provide a Custom Local Quote:
Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
EZ Log Full D-Log tongue & groove wood siding (Add 14%)
Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
Heavy Duty maintenance free extruded PVC polymer siding (Add 20%)
Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
Custom Local Siding Quote
We can also provide you a quote for a locally sourced siding option. PVC, Steel, or other.
Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 12"
Build Team
For ease of mind to get all of the above or just specific steps, you can request our build team to do it for you.
It can be a one stop shop - the Complete Package Option. Either choose all of the above, or just pick which steps
you need us for.
(some exceptions may apply for shipping to remote locations)

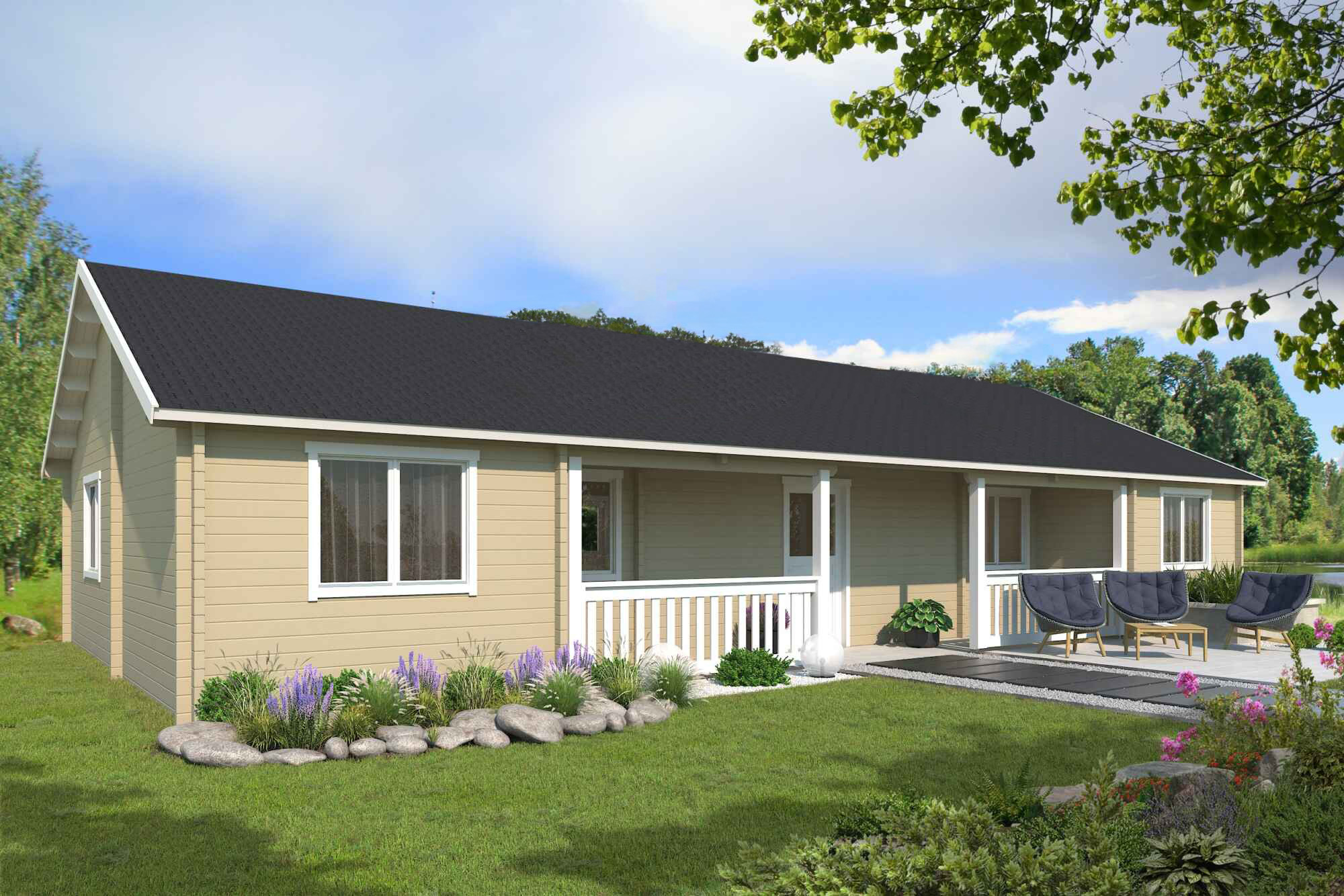

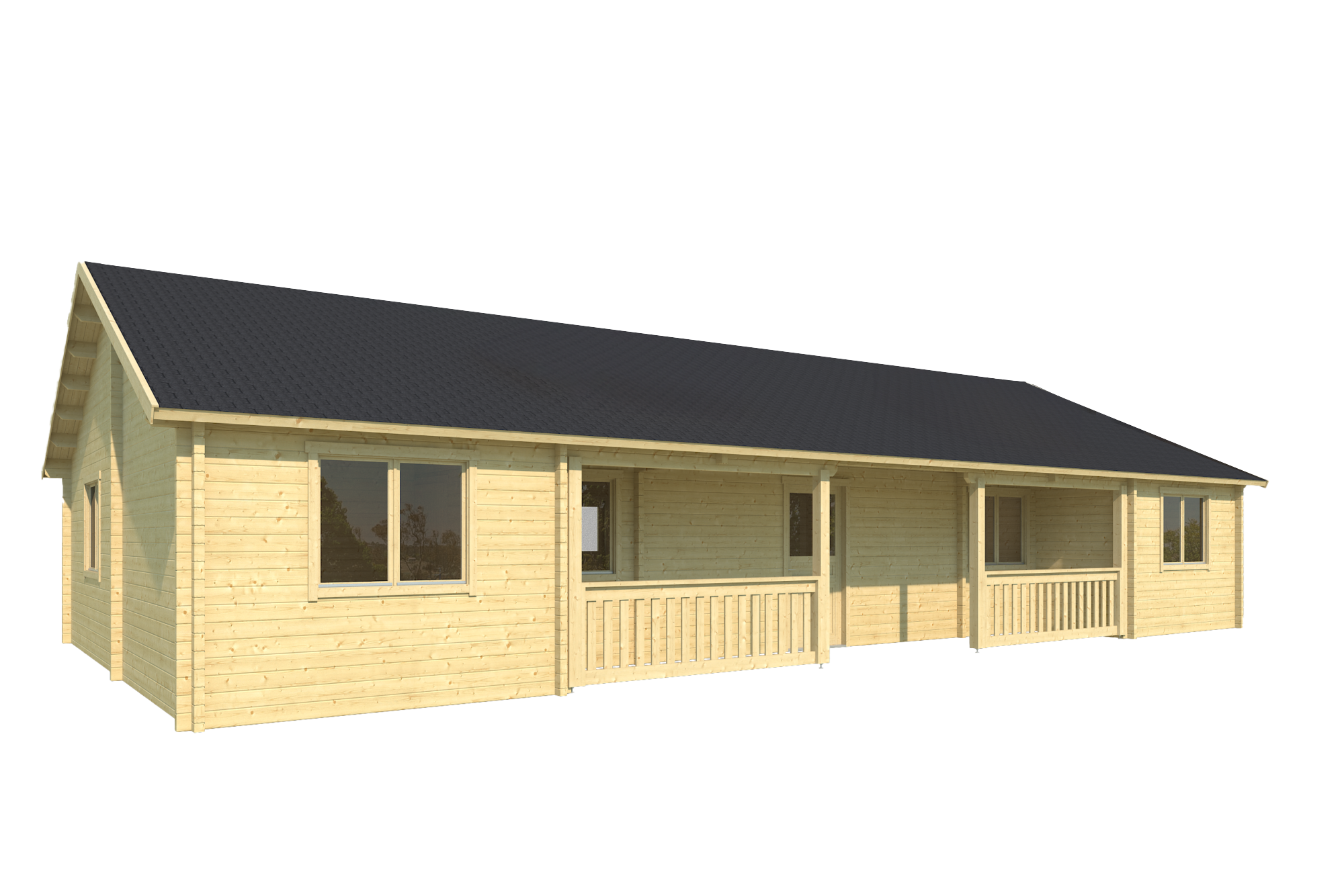

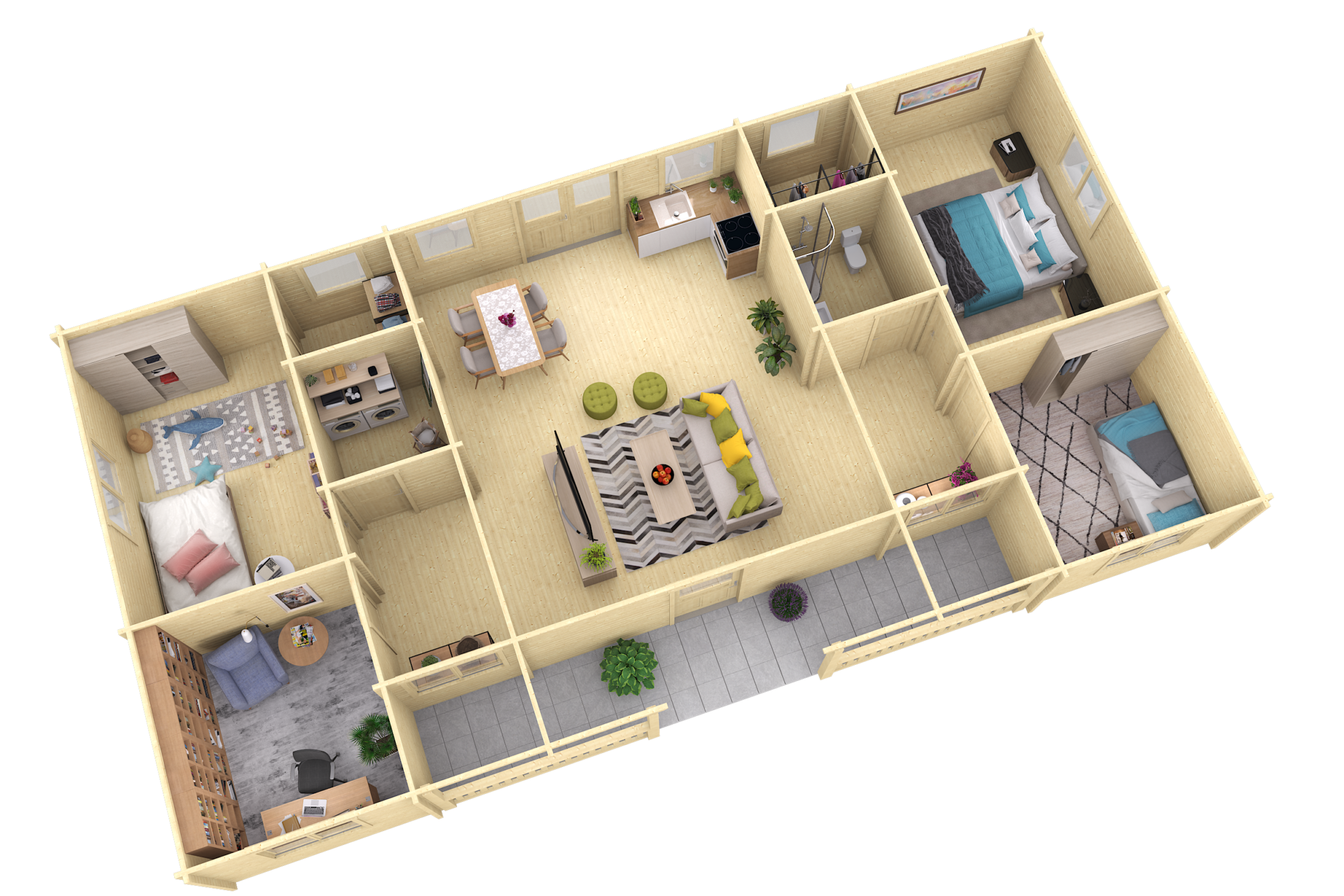

Dallas is a 1300 sq’ ranch style home with 4 bedrooms & 2 bathrooms. This popular kit model can be assembled by 4 people in 8 days or less. The home is insulated by applying studs on the exterior and covering the exterior with EZ Log wood siding or our NEW maintenance free extruded PVC/Polymer siding. You can also use locally purchased siding, stucco, brick or stone. There is a vaulted/cathedral ceiling throughout, providing a spacious and airy home
Kit includes:
ready to assemble on a concrete slab or wood foundation
pre-cut, numbered exterior walls
pre-cut, numbered interior walls
pre-cut, numbered gable components
sidewall height 95″ (2413mm)
vaulted, cathedral ceilings

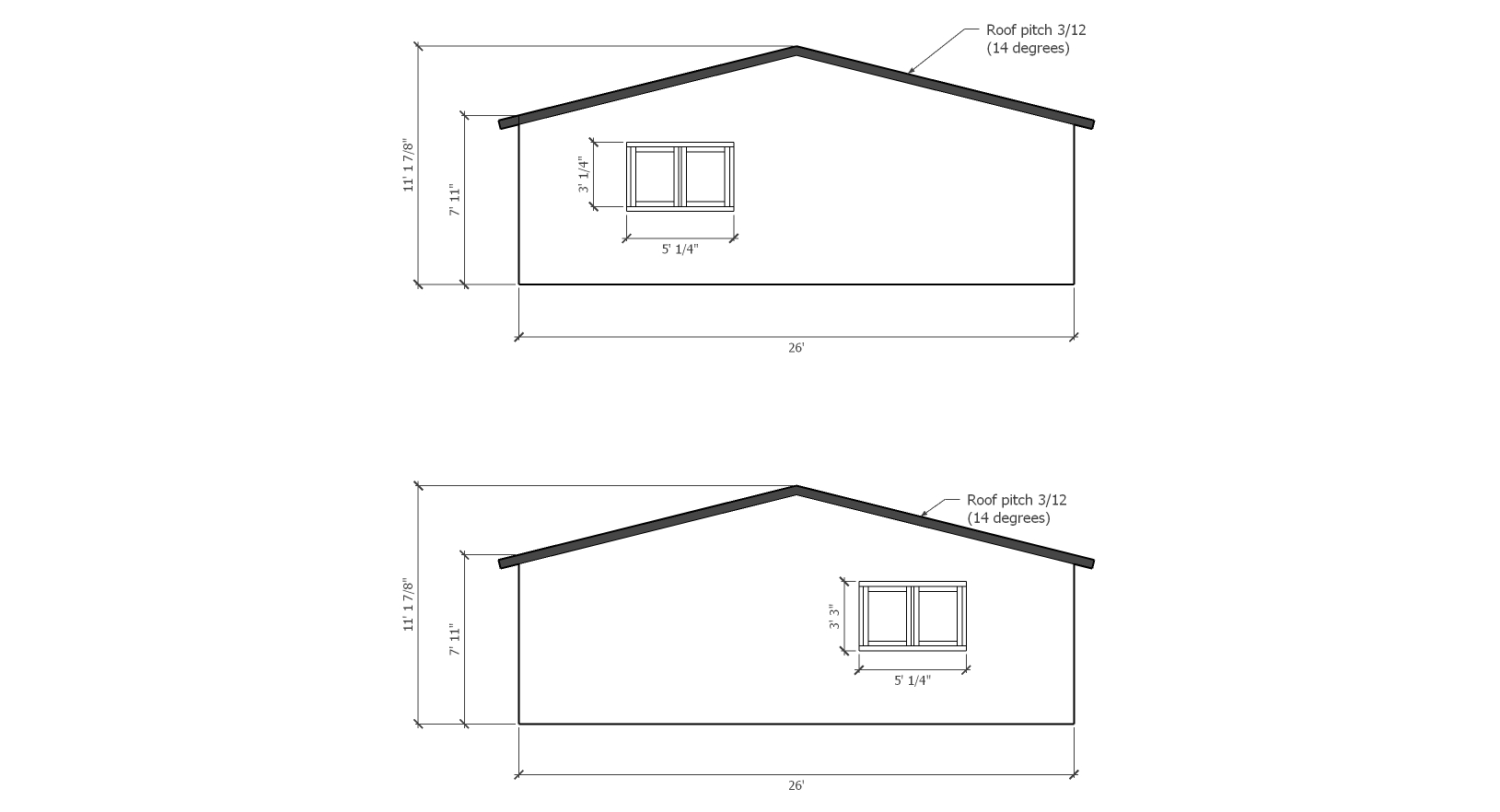

roof pitch 3/12 (14 degrees)
pre-cut 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
8 interior doors 32″x80″ (812mm x 2040mm), hardware
2 single wide wood window 21″ x 21″ (530mm x 530mm)
2 single wide wood windows 30″x39″ (765mm x 990mm)
2 single wide wood windows 30″x60″ (765mm x 1530mm)
4 double wide wood window 60″x39″ (1530mm x 990mm)
1 exterior door 36″x80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
1 exterior double door 61″ x 80″ (1550mm x 2040mm) 1/2 glass tempered, multi locking hardware
deck posts, railing with vertical balustrades
2 spare wall logs/spare roof boards
2,700 – 8″ log screws to connect each row, gable components, purlins
packaged/wrapped for sequence of assembly
FREE SHIPPING

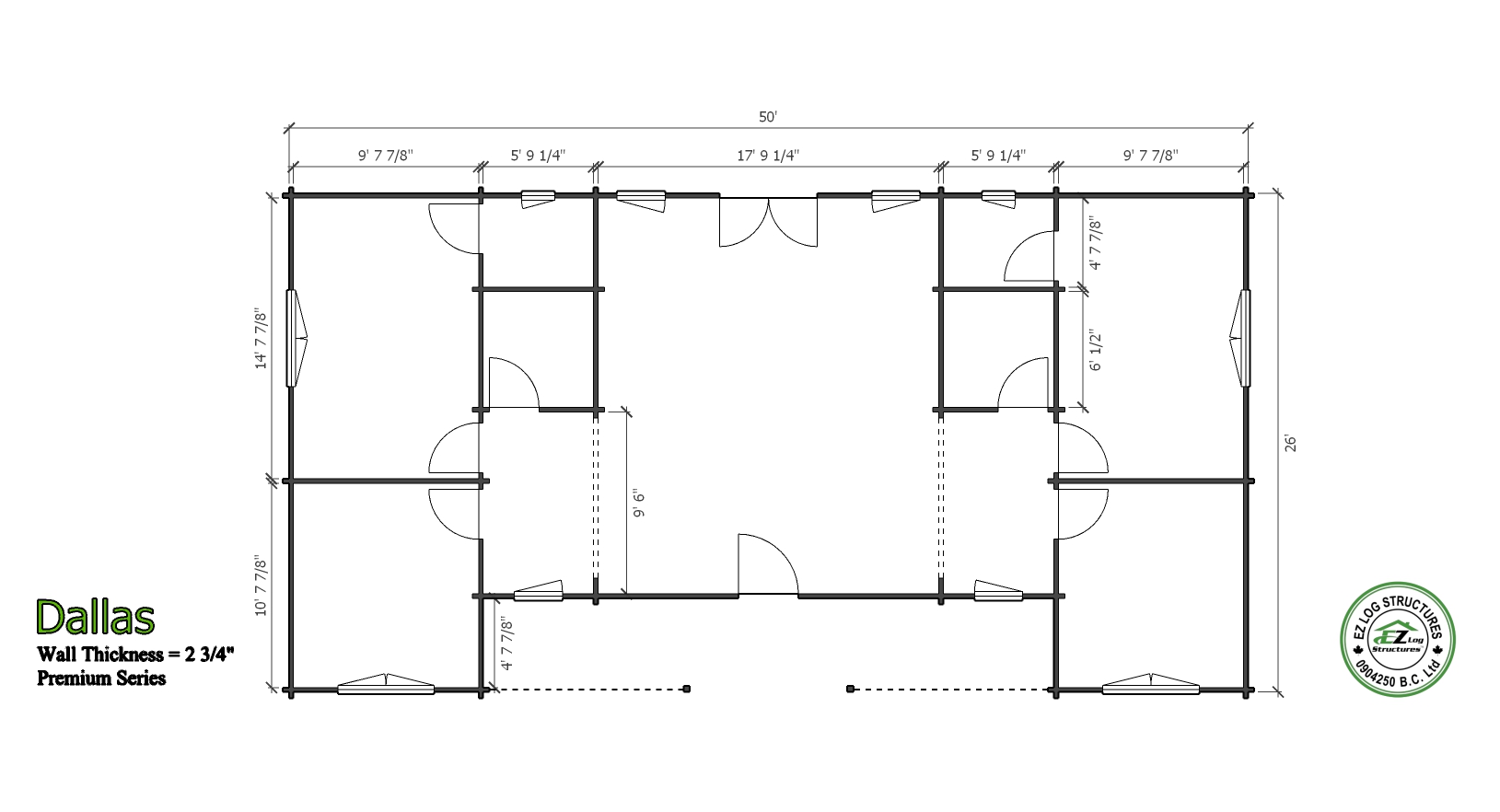

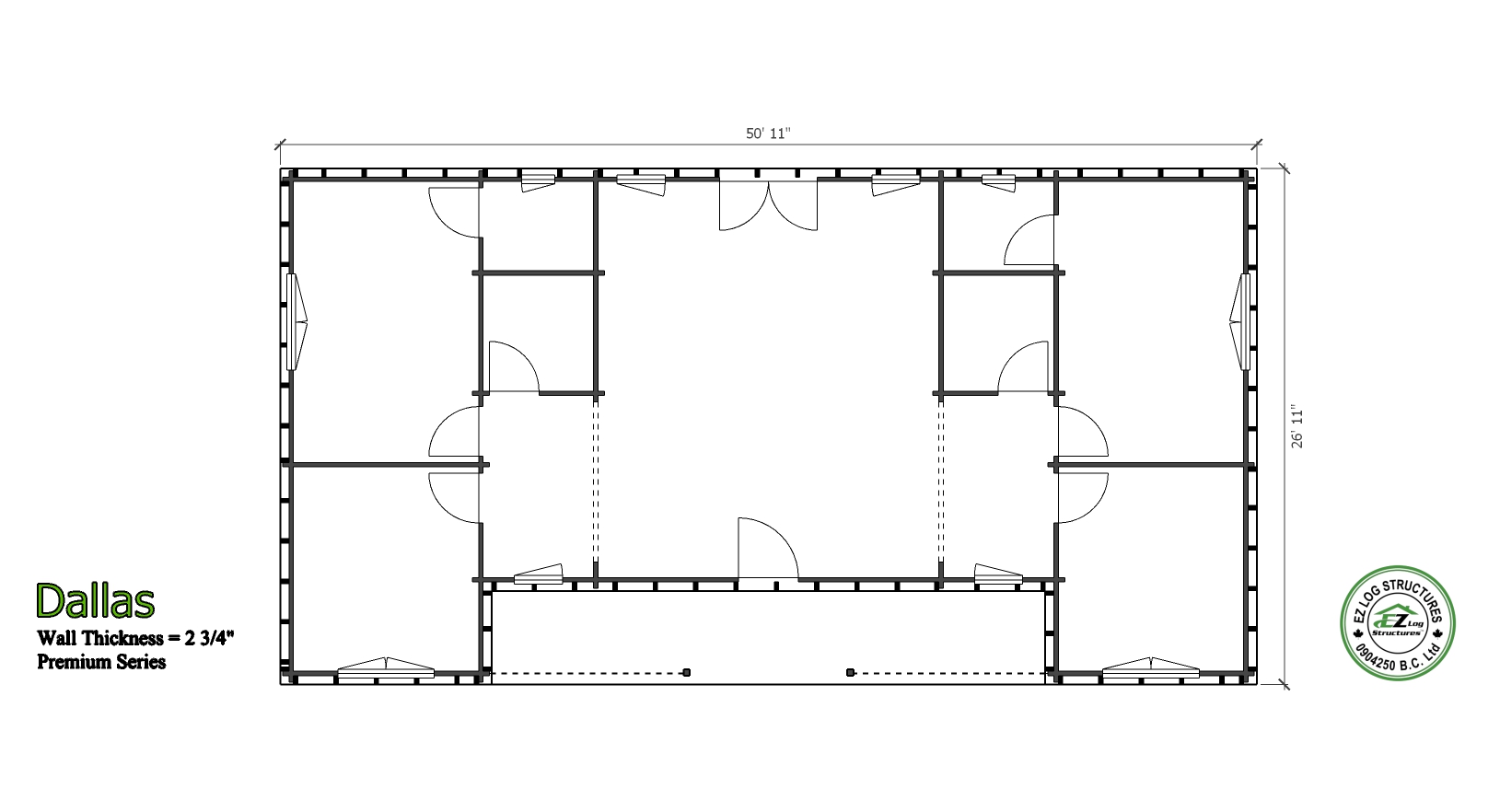

FOUNDATION SIZE DRAWING
STAMPED STRUCTURAL ENGINEERING
Window Options:
Kit includes double glazed residential grade wood windows.
To upgrade all windows to triple glazed/Low E/Argon gas filled (14 sash)
Add $ 1,960.00 CAD
OR
PVC window - white frame. PVC window with built-in external shutters. Shutter window.
Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
4
2
600"x312"
1300
2524
2-3/4"
3/4"
134"
3/12 14D
95"
