NEW!
Glen Valley Coach House
$175,330.00
Sale:
960 sq ft
Premium Model
Sale:
2
1
288"x480"
960
2-3/4"
3/4"
296"
12/12 (45deg) & 2,5/12 (12deg)
144" (2nd flr 95")
Complete Package Options
The following items may need to be added to your Home Kit Build. Note: we provide the purchase of the initial kit above, but the list of items below may also be needed. If you already have things in place you can leave those items out.
Ground Work/Site Prep/Gravel
The location needs to be clear and ready. Gravel may need to be brought in. If you are unsure how ready your site is, one of our team can come out and make an assesment to confirm where you're at.
Base: Concrete Pad or Concrete Foundation/Basement
Your Home or Cabin will definitely need to be put on a foundation. Options are for a concrete slab/full foundation on prepared ground. Depending on your ground, other options may need to be considered.
Roofing (ice & water barrier & steel)
The building kits come with tongue and groove roof slats - but for water tightness you will want the ice/water barrier and the steel roof.
Electrical
Plumbing
Interior Finishes
- Kitchen, Cabinets and Counters Install
- Bathroom Install
- Trim and Millwork
- Wall Finishes
- Flooring
- Fixtures
- Interior Stain
Door and Window Upgrades
Exterior Stain (wall protection)
We recommend nothing but the best. Our team can do this for you - or we can point you in the right direction.
Insulation & Sheathing/Exterior Stud & Siding Kits
If you would like that extra layer of protection, and year round use, we can add insulation and sheathing. This would be recommended for the Cabins and will be necessary for Homes.
We offer 3 types of siding kits to cover the exterior of the home or cabin, or we can provide a Custom Local Quote:
EZ Log Semi D-Log tongue & groove wood siding (Add 10%)
Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
EZ Log Full D-Log tongue & groove wood siding (Add 14%)
Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
Heavy Duty maintenance free extruded PVC polymer siding (Add 20%)
Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
Custom Local Siding Quote
We can also provide you a quote for a locally sourced siding option. PVC, Steel, or other.
Note: Siding Kits will also need locally sourced 2×6 studs, stud screws, siding, corner blocks, & trims, extending the roof overhang 12" and is not included in the percentage price listed above.
Customization
This would be for any modfications to the kit itself, or if you would like throw on a deck/porch, alter various items or add in any other options not already listed.
Build Team
For ease of mind to get all of the above or just specific steps, you can request our build team to do it for you. It can be a one stop shop - the Complete Package Option. Either choose all of the above, or just pick which steps you need us for.
Ready To Buy?

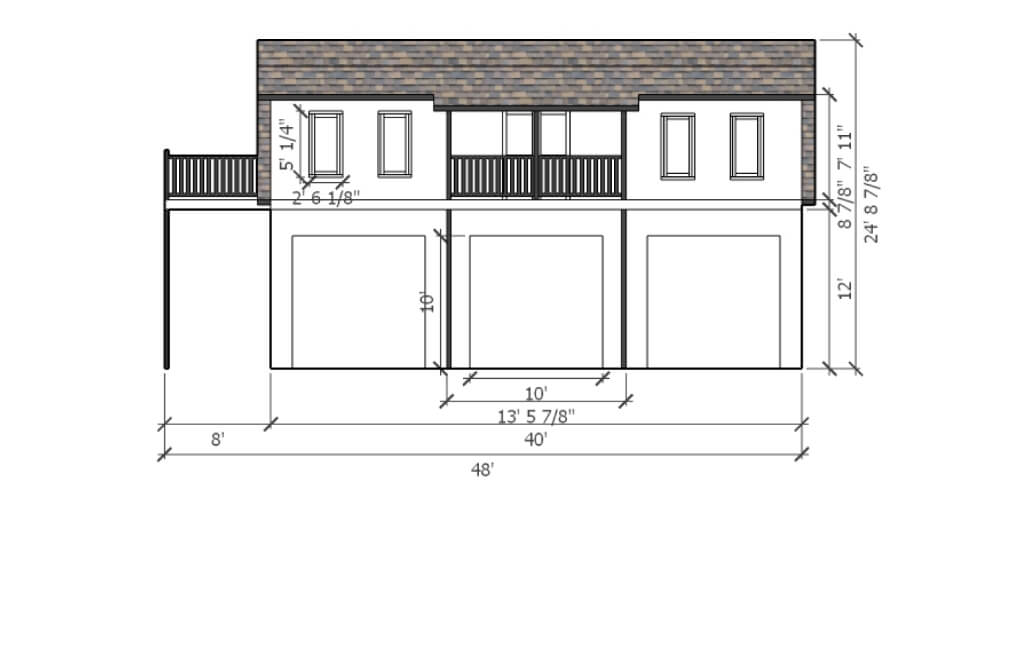

Contact Us >Glen Valley Coach House is a Custom Tay Valley Log Structure Kit. It offers 12 ft ceiling in the garage bays, a mudroom/closet at the bottom of stairs, 2 bedrooms at 13' x 15' each (including closets), 1 bath at 7' 9" x 8' and a living area of 13' x 24, large enough to place a kichen area and have a comfortable living room. Off the living area is a grand balcony at 8' x 14'. The main room has a balcony at 4' x 13' 5". This model can be modified for lower garage ceiling, or downsized to a two bay model.
Kit includes:
- Pre-cut components ready to assemble on a concrete slab or wood foundation
- sidewall height 120” (3048mm)
- 4″ x 8” (100mm x 200mm) glulam floor beams, spaced 22” (558mm) or less
- loft floorboards 1-1/8 (28mm)
- loft ladder
- roof pitch 12/12 (45 degrees), roof pitch 2,5/12 (12 degrees)
- 4″ x 8” (100mm x 200mm) glulam roof purlins/beams, spaced 22” (558mm) or less
- ¾” (18mm) tongue & groove roof & fascia boards
- 3968 total sq’ of wall area
- 2711 sq’ of exterior wall surface
- 211 lineal’ per row
- 4 interior doors 32″x 80 (812mm x 2040mm) or 36″ x 80 (914mm x 2040mm)
- DOUBLE GLAZED WOOD WINDOWS & DOORS – with exterior trims 3.5” x 1.5” (890mm x 40mm)
- 1 single wide window 23” x 60” (530mm x 1530mm)
- 1 single wide window 23” x 60” (530mm x 1530mm)
- 5 single wide windows 30″ x 60” (765mm x 1530mm)
- 1 double wide window 60″x 39 (1530mm x 990mm)
- 1 rake/angled window for front & rear gable walls
- 1 exterior doors 36″x 80 (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
- 2 exterior double door 61″ x 80″ (1550mm x 2040mm) full glass tempered, multi locking hardware
- 3 rough openings for locally supplied overhead garage door
- NEW 2 – 6′ closet kits for locally purchased bi-fold doors
- NEW 1 – 8′ closet kit for locally purchased bi-fold doors
- NOTE: overhead garage doors not included
- deck posts, railings, vertical balustrades
- 2 spare wall logs/spare roof boards
- 4,200 - 8″ log screws to connect each row, gable components, purlins
- packaged/wrapped for sequence of assembly
- FREE SHIPPING
- FOUNDATION SIZE DRAWING
- STAMPED STRUCTURAL ENGINEERING
Window Options:
- Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (6 sash)
Add $ 960.00 CAD
OR
PVC window - white frame. PVC window with built-in external shutters. Shutter window.
- Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
Add $ 2,160.00 CAD
